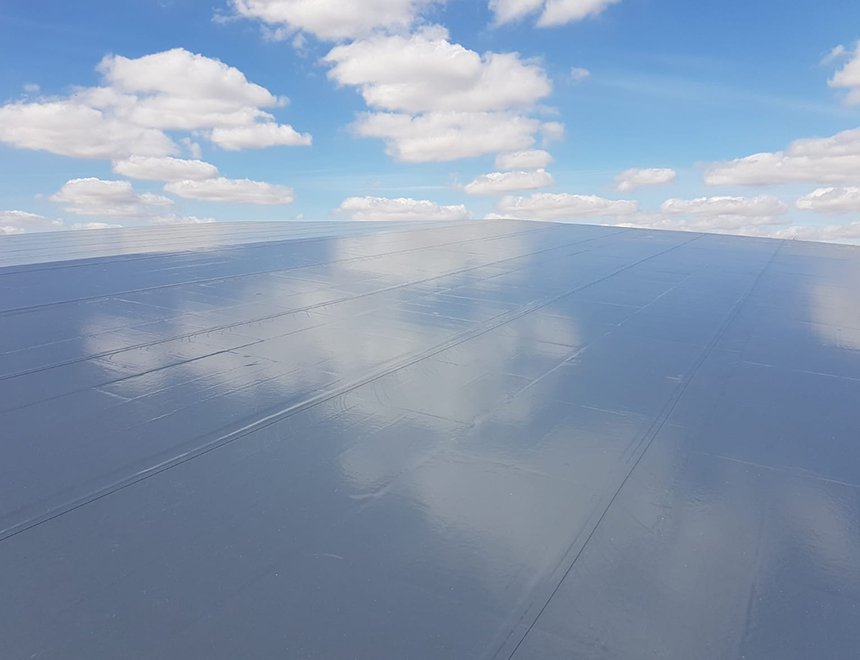

EVALON® V
Superior Single-Ply Waterproofing
EVALON® V is a vinyl-ethylene-terpolymer (VET), comprising polyvinyl-chloride (PVC) and ethylene-vinyl-acetate (EVA), which results in an extremely stable product, free from potentially harmful volatile plasticisers. With excellent chemical resistance, it provides a reliable protective membrane against inclement weather to ensure buildings remain protected for years to come.
Usage
- Flat Roofs
- Curved Roofs
- Sloped Roofs
- Mansard Roofs
- Dormers
- Foundations
Advantages
- Quick and easy to install
- Bitumen compatible
- Superior heat reflection
- Suitable for any roof geometry
- Approved for Green Roofs (Roof-Resistant)
- Available in a range of colours
Product Details Back to top
Product Specification
All EVALON® V standard rolls are individually wrapped and laid horizontally on pallets of up to 15 units, for transportation.
| Properties | Measurement |
|---|---|
| Effective thickness of waterproofing layer (mm) | 1.2 / 1.5 |
|
Width (m) |
1.05 / 1.55 / 2.05 1.05 / 1.09 / 1.59 |
| Lengths (m) | 25 |
| Specified lengths | on request |
| Standard colours | white / light grey / slate grey |
| Special colours | on request |
Technical Data
| Properties | Testing Method | Unit | EVALON® VSK Results |
|---|---|---|---|
| Visible Defects | EN 1850-2 | passed | |
| Effective Thickness (eeff)of waterproofing layer | EN 1850-2 | mm | 1.2/1.5 |
| Water tightness | EN 1928 (B) | kPa | ≥ 400 |
| External Fire Performance | ENV 1187 CEN/TS 1187 | class BROOF (t1) + (t3) + (t4) Resistant to sparks and radiant heat, confirmed by General Building Construction Supervision Test Certificates | |
| Reaction to Fire | EN 13501-1 | class E | |
| Joint Peel Resistance | EN 12316-2 | N/50mm | ≥ 150 |
| Joint Sheer Resistance | EN 12317-2 | N/50mm | ≥ 400 |
| Max. Tensile Force | EN 12311-2 (A) | N/50mm | ≥ 500 |
| Elongation at Max. Tensile Force | EN 12311-2 (A) | % | ≥ 60 |
| Resistance to Impact Load | EN 12691 (A) | mm | ≥ 300 |
| Resitance to Static Load | EN 12730 (B) | kg | ≥ 20 |
| Tear Resistance | EN 12310-1 | N | ≥ 300 |
| Tear Resistance | EN 12310-2 | N | ≥ 150 |
| Resistance to Root Penetration | EN 13948 | passed | |
| Dimensional Stability | EN 1107-2 | % | ≥ 1 |
| Low Temperature Flexibility | EN 495-5 | °C | ≥ -30 |
| Durability (UV Exposure, High Temperatures & Water | EN1297 | Visual Control | passed |
| Durability of Water Tightness Against Artificial Aging | EN 1296 EN 1928 | kPa | ≥ 60 |
| Durability of Water Tightness Against Chemicals incl. water | EN 1847 EN 1928 | kPa | ≥ 60 |
| Hail Resistance | EN 13583 | m/s | ≥ 30 |
| Water Vapour Permeability | EN 1931 | µ | approx. 20,000 |
| Bitumen Compatibility | EN 1548 | passed |
Quality
| Certifying body | Testing |
|---|---|
| State Material Testing Institute, Darmstadt, Germany | External quality control Certificate of conformity according to DIN EN 13956 and DIN EN 13967 |
| DEKRA Certification GmbH, Stuttgart | Comprehensive external quality control of the product system |
| Society for Materials Research and Testing Institute for the Leipzig construction industry Warringtonfire Gent (Belgium) Exova Warringtonfire (United Kingdom) |
Tests with General Building Construction Supervision Test Certificate (AbP) according to DIN 4102-7 (resistance to flying sparks and radiant heat) as well as DIN CEN/TS 1187; Test methods 1, 3 and 4 (external fire load) with classification according to DIN EN 13501-5 resp. AbP Tests according to DIN 4102-1 (building material class B2) and DIN EN ISO 11925-2 with classification according to DIN EN 13501-1 (class E) |
| Environmental Product Declaration | EPD‘s for various application methods and material thicknesses according to ISO 14025 and EN 15804 corresponding to the guidelines of the Institute Construction and Environment (IBU) |
| German Institute for Building Technology (DIBt), Berlin, Germany | European technical assessment ETA-08/0112 (ETAG 006) |
| Chamber of Agriculture Rhineland, teaching and research institute for Gardening and landscaping, Essen, Germany | Testing according to FLL 84 (root penetration resistance) |
| Research institute, Field of Landscaping, Geisenheim, Germany | Testing according to FLL 99 (root / rhizome penetration resistance) |
| British Board of Agrément (BBA), Garsten/Watford, UK | Tests according to Building Standards Regulations (England, Wales and Scotland), Certificate No. 96/3293 |
| Scientific and Technical Center for Building), Marne Valle, France | Avis Techniques CSTB 5.2/19-2641_V1, CSTB 5.2/19-2640_V1 |
| Factory Mutual / FM Global, Norwood, USA | FM-Approval, Class 4470 |
Sustainability
Alwitra was the first enterprise of the industry to introduce relevant Environmental Product Declarations of the Institute Construction and Environment (Institut Bauen und Umwelt e. V. - IBU) for the EVALON®® and EVALASTIC®® waterproofing membranes.
For certifications according to DGNB, LEED or BREEAM alwitra® provides appropriate product fact sheets.
