Multi-piece rolled and additionally folded aluminium profile

• Infinitely adjustable in all directions
• Multi-piece rolled and additionally folded aluminium profile
• Supplied with patented 4F-brackets as standard

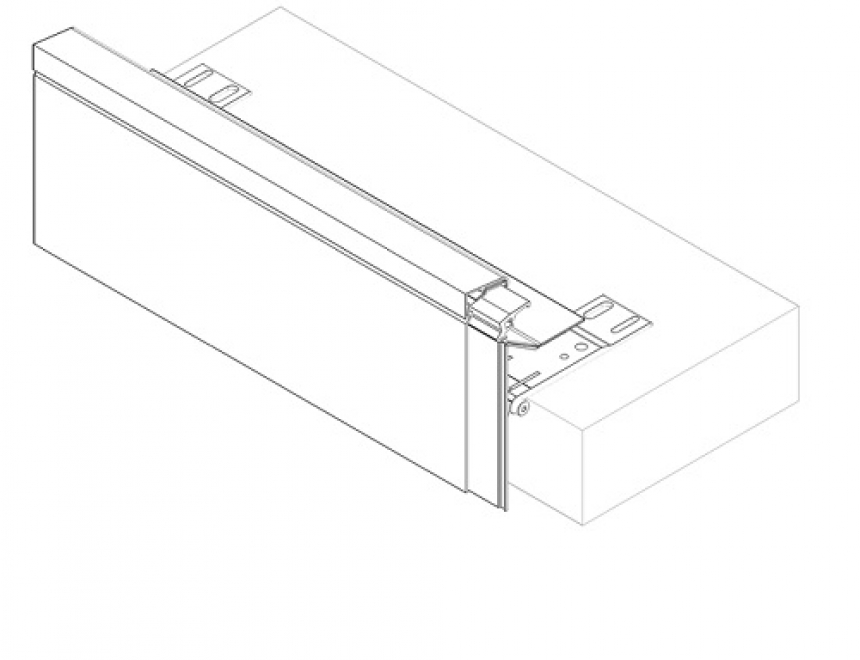

The TA-4F roof edge trim profiles come with patented 4F fixing brackets.

• Front face height series TA-4F: 150 - 200 mm
• With patented 4F brackets
• Height-adjustable, horizontally moveable, rotatable, angle-adjustable

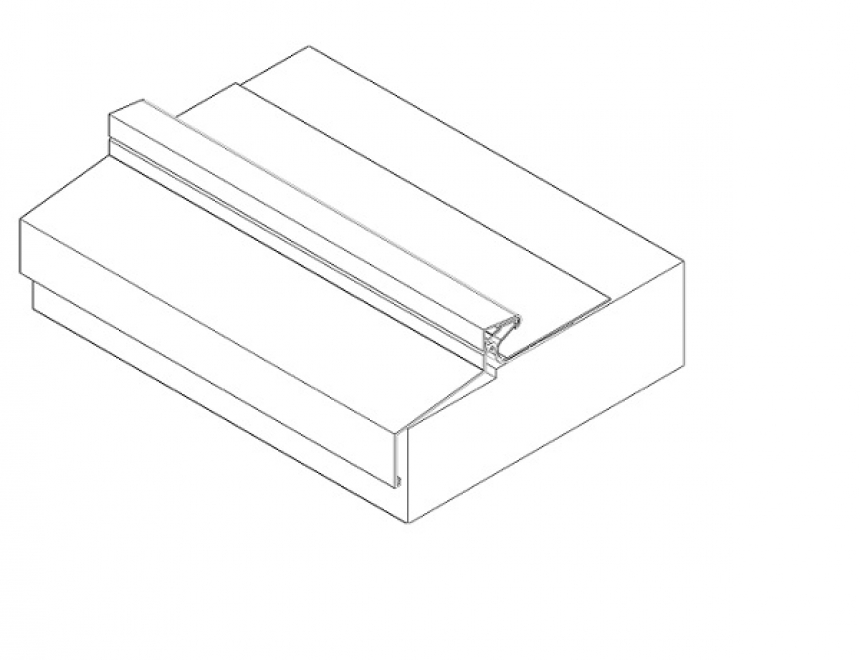

Two-part, corrosion-resistant extruded aluminium profile

• Consists of 2.50m long TW 125 profiles with perforated fixing flange
• The rigid perforated fixing flange is used to both prevent wind intrusion and absorb horizontal forces of the waterproofing
• It can cover facades and external thermal insulation composite systems for up to 120mm.

2.5m long top caps for easy connection of various waterproofing membranes

• Includes ready-to-install external and internal corners with 200mm long corner legs
• Up to 3.0m long T-profiles in different front heights (­105, ­125, 150, ­175mm)
• Rain resistant butt joints ensured by joining plates, permanently located at the centre of the join

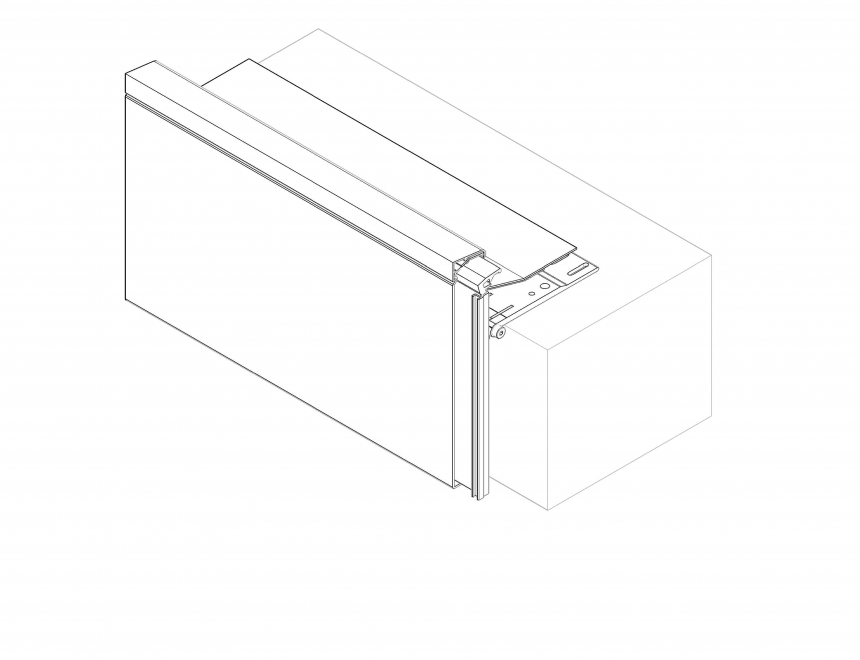

All TAG profiles come with a unique and patented 4F fascia mounting bracket which allows universal adjustment,

• Allows free movement of all structural parts
• Prevents splitting of the waterproofing caused by thermal expansion and contraction of differing materials
• Ideal for new build and refurbishment projects

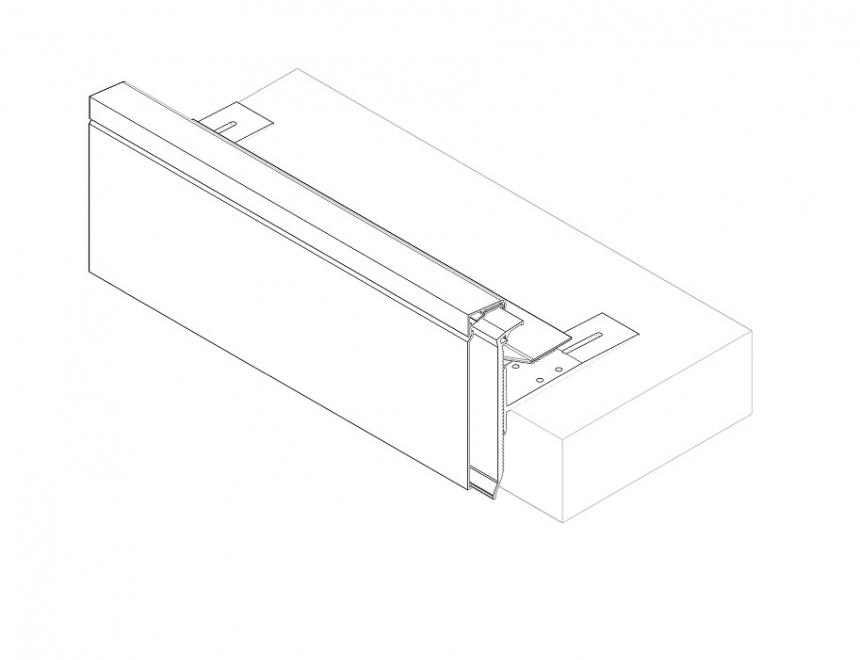

TA Edge Trims can easily be installed over existing failing roof edges.

• Available in various profile finishes and colours, they are specifically designed to work with single-ply and felt membranes.
• Fillet plates for in-line fastening as well as for protecting the roof waterproofing against wind uplift along the roof edge
• Practically proven tension-free flashing against the roof waterproofing
