alwitra® Rainwater Outlet Vertical
The thermally insulated alwitra® rainwater outlet S (vertical) made of highly impact resistant polypropylene (PP) provides the connection between vertical drainage pipes and the waterproofing at cold or inverted roofs.
Advantages
- Flashing against the roof waterproofing is carried out with a special screw ring
- Corresponding EVALON®® or bituminous connection flanges are readily available as optional system accessories
- Only one single roof outlet is required for flashing against four predominantly used sizes of drainage pipes (DN 70, DN 100, DN 125 and DN 150) in gravity drainage
Usage
- Cold and Inverted Roofs
Product Details Back to top
Product Specification
Technical data of alwitra® rainwater outlet S 125/110
| Class (leaf guard / gravel stop): | H 1.5 |
| Discharge: | Vertical |
| Material: | Highly impact resistant PP |
| Colour: | Black (optional connecting flange in the colour of the waterproofing membrane) |
| Required roof opening: | Ø 200 mm (Ø 190 mm possible) |
| Height: | Approx. 190 mm (approx. 275 mm incl. installed reducer) |
| Outer diameter flange: | 290 mm |
| Number of screw holes in flange: | 4 |
| Ø of screw holes in flange: | 240 mm |
| Flange width: | Approx. 50 mm |
| Connection diameter: | 125 mm (DN 125) and 110 mm (DN 100); 75 mm (DN 70) with optional reducer; 160 mm (DN 150) with optional adapter |
| Outer diameter of optional connecting flange: | 480 mm |

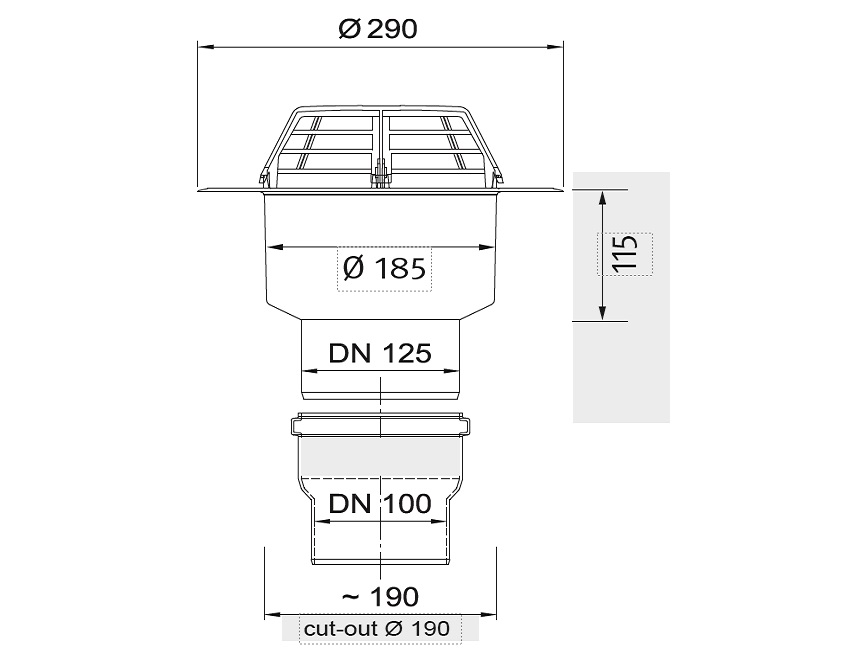

Technical Drawings
