Emergency Outlet
In the case of refurbishment with additional thermal insulation, where it is not possible to replace existing outlets, it is recommended to install alwitra refurbishment rainwater outlets.
As used on landmark architecture throughout the world
40 years experience with waterproofing systems in the UK
Usage
- For flat roofs with internal drainage
Product Details Back to top
Product Specification
Technical data of the Emergency Outlet Socket
| Application: | For all alwitra® rainwater outlets and extension pieces |
| Material: | Highly impact resistant PP |
| Colour: | Black |
| Min. ponding height: | approx. 20 mm |
| Miax. ponding height: | 40: approx. 40 mm 100: approx. 100 mm SL: according to customer specification pre-adjusted from 20 - 95 mm |
| Outer diameter of optional connecting flange: | 480 mm |

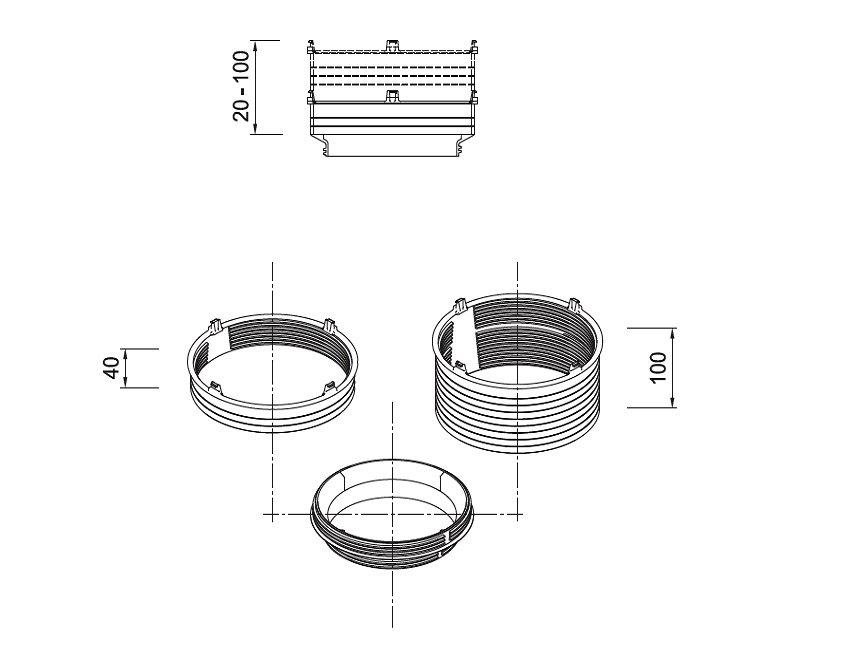

Technical Drawings
